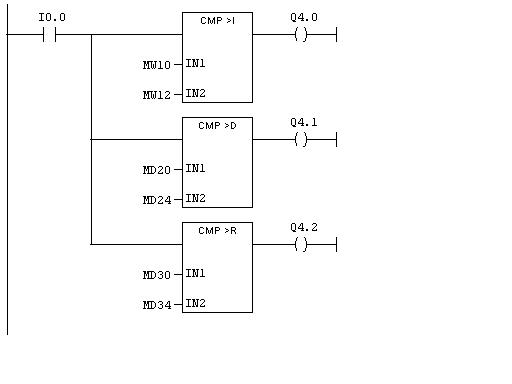

IN1 and IN2 are compared according to the type of comparison you choose:
< IN1 is less than IN2
>= IN1 is greater than or equal to IN2
<= IN1 is less than or equal to IN2
Saturday, July 16, 2011
Bit Logic Instructions
Bit logic instructions work with two digits, 1 and 0. These two digits form the base of a number system called the binary system. The two digits 1 and 0 are called binary digits or bits. In the world of contacts and coils, a 1 indicates activated or energized, and a 0 indicates not activated or not energized.
---| |--- Normally Open Contact (Address)
---| |--- (Normally Open Contact) is closed when the bit value stored at the specified <address> is equal to "1". When the contact is closed, ladder rail power flows across the contact and the result of logic operation = "1".
When used in series, ---| |--- is linked to the logic operation bit by AND logic. When used in parallel, it is linked to the logic operation by OR logic.
---| / |--- Normally Closed Contact (Address)
--| / |--- (Normally Closed Contact) is closed when the bit value stored at the specified <address> is equal to "0". When the contact is closed, ladder rail power flows across the contact and the result of logic operation = "1".
Friday, May 27, 2011
Procedure for Configuring SIEMENS
Requirement
You must have opened a project or created a new project in the SIMATIC Manager.
Basic Procedure
To configure and assign parameters to a structure, proceed as shown below:
Creating a New Project
Requirement
You must have opened the SIMATIC Manager and opened a project or created a new project.
Procedure
A station can only be created directly beneath a project.
- Select the project in the left half of the project window.
- Select the menu command Insert > Station > SIMATIC 300-
The station is created with a preset name. You can replace the name of the station with a more relevant name of your own.
Configure the Hardware
Requirement
You must have created a station (SIMATIC 300,).
Procedure

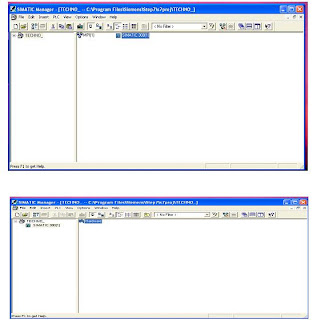

Select the "Station" object in the project window so that the "Hardware" object becomes visible in the right half of the station window.
Rack
Requirement
The station window must be open and you must have a plan of the hardware configuration of the station.
Procedure
Select a suitable central rack ("Rack") for your configuration from the ”Hardware Catalog” window; in SIMATIC 300 the Rail
Drag the rack to the station window.
The rack appears in the form of a small configuration table in the upper part of the station window. In the lower part of the window, the detailed view of the rack appears with additional information such as the order number, MPI address, and I/O addresses.
Alternatively to steps 1 and 2, you can also double-click the rack in the
The rack appears in the form of a small configuration table in the upper part of the station window. In the lower part of the window, the detailed view of the rack appears with additional information such as the order number, MPI address, and I/O addresses.
Alternatively to steps 1 and 2, you can also double-click the rack in the
Slot Rules (S7-300)
Rack 0:
- Slot 1: Power supply only (for example, 6ES7 307-...) or empty
- Slot 2: CPU only (for example, 6ES7 314-...)
- Slot 3: Interface module (for example, 6ES7 360-.../361-...) or empty
- Slots 4 through 11: Signal or function modules, communications processors, or free.
Save and Compile
Download toPlc
Project Structure
Projects are used to store the data and programs which are created when you put together an automation solution. The data collected together in a project include:
- Configuration data on the hardware structure and parameters for modules,
- Configuration data for communication in networks, and
- Programs for programmable modules.
The main task when you create a project is preparing these data for programming.
Data are stored in a project in object form. The objects in a project are arranged in a tree structure (project hierarchy). The display of the hierarchy in the project window is similar to that of the Windows Explorer. Only the object icons have a different appearance.
The top end of the project hierarchy is structured as follows:
Project Object
The project represents the entirety of all the data and programs in an automation solution, and is located at the top of an object hierarchy.
Station Object
A SIMATIC 300station represents a S7 hardware configuration with one or more programmable modules.
Programmable Module Object
A programmable module represents the parameter assignment data of a programmable module (CPUxxx, FMxxx, CPxxx). The system data of modules with no retentive memory (for example, CP312C) are loaded via the CPU of the station. For this reason, no "system data" object is assigned to such modules and they are not displayed in the project hierarchy.
S7 Program Object
A (S7)program folder contains software for S7 CPU modules or software for non-CPU modules (for example, programmable CP or FM modules).
Source File Folder Object
A source file folder contains source programs in text forma
Block Folder Object
A block folder of an offline view can contain: logic blocks (OB , FB, FC, SFB, SFC), data blocks (DB), user-defined data types (UDT) and variable tables. The system data object represents system data blocks.
The block folder of an online view contains the executable program parts that have been downloaded to the programmable controller.
Organization Blocks (OBs)
Organization Blocks (OBs) are the interface between the operating system of the CPU and the user program. OBs are used to execute specific program sections:
SIEMENS - Tutorial
SIEMENS ADDRESS
System Default Address Input I124.0 I124.7
Output Q124.0 Q124.7
User Define Address Input I0.0 I0.7
I1.0 I1.7
Output Q0.0 Q0.7
Q1.0 Q1.7
Internal Memory Bit M0.0 M0.7
M1.0 M1.7
Upto M124.0 M124.7
Integer MW0 , MW2 , MW4 , Upto MW124
Double Integer MD0 , MD4 , MD8 , Upto MD124
Timer T0 Upto T255
Counter C0 Upto C255
Tuesday, April 26, 2011
PLC Wiring
As the amount of current carried by a wire increases, it is important to use a wire with a larger cross section. A larger cross section results in a lower resistance, and less heating of the wire.
The standard wire gages are listed below:
The standard wire gages are listed below:
AWG # Dia. (mil) Res. 25C Rated Current
(ohm/1000 ft) (A)
4 204 0.25
6 162 0.40
8 128 0.64
10 102 1.0
12 81 1.6
14 64 2.6
16 51 4.1
18 40 6.5
20 32 10
22 25 17
24 20 26
Monday, April 18, 2011
ALLEN BRADLEY PROGRAMING GUIDE
ALLEN BRADLEY
MODEL NO: MICROLOGIX 1200 SERIES C
INPUT: 14 & OUTPUT: 10
COMMUNICATION PROTOCOL: RS 232
TO OPEN THE SOFTWARE
Then select CPU model
FILE – NEW – SELECT (MICROLOGIX 1200 SERIESC)
Hardware configuration:
DIGITAL INPUT/DIGITAL OUTPUT (14/10):
INPUT: I: 0/0 to I: 0/13
OUTPUT: O: 0/0 to O: 0/9
INTEGER: N7:0 N7:255
FLOAT: F8:0 F8:255
BINARY: B3:0/0 B3:0/15
.
.
.
.
B3:255/0 B3:255/15
CONTROL
REGISTER: R6:0 R6:255
JUMP: Q2:0 Q2:99
SUB ROUTINE: U:3 U:99
STRING: ST9:0 ST9:255
ANALOG (2/2)
INPUT: I:1.0 AND I:1.1
OUTPUT: O:1.0 AND O:1.1
USER:
NO CONTACT
NC CONTACT
LOAD
LATCH COIL
UN LATCH COIL
PLC SCAN PROCESS
The scan time indicates how fast the controller can react to changes in inputs. Scan times vary with computer model and program content, and length. If a controller has to react to an input signal that changes states twice during the scan time, it is possible that the PLC will never be able to detect this change.
